| Overall Characteristics |
Material of complete machine |
Machine Sand blasting oxidation all aluminum structure |
| Laser |
The service life of fiber laser generator is more than 100,000 hours |
| Laser wave length |
1064nm |
| Actual output power |
≥20W |
≥30W |
| Marking speed |
≤12,000mm/s |
| Master control |
8 inch touch controller |
| Cooling system |
Normal temperature Air cooling |
| Minimum line width |
0.0012mm |
| Positioning mode |
Red light indication |
| Number of lines of engraved characters |
Within the marking range, any number will do |
| Production line speed |
0~130m/min (depending on the material) |
| Software Introduction |
Multilingualism |
English, French, Spanish, German, Chinese, Russian, Arabic, etc. |
| Operation authority |
Multi user management authority |
| Operating system |
Linux system |
| Inkjet mode |
Static, analog and encoder. Three printing modes |
| Reserved signal |
Start printing, printing status, printing completion, fault alarm |
| Data protection |
With power-off data protection function |
| Missing print monitoring |
False triggering due to material reflection, providing overspeed alarm function |
| Remove intersections |
Automatically remove intersection points to avoid overlapping |
| Coding software |
It can realize single and dual code sending |
| Supporting Content |
Typeface |
Chinese, English, digital, traditional and other standard fonts |
| Support file format |
BMP / DXF / HPGL / JPEG / PLT |
| Barcode |
CODE39, CODE128, CODE126, QR Code (optional) |
| Parameters |
Power Supply |
Standard configuration: external power supply 220V / 50Hz |
| Power consumption |
200W |

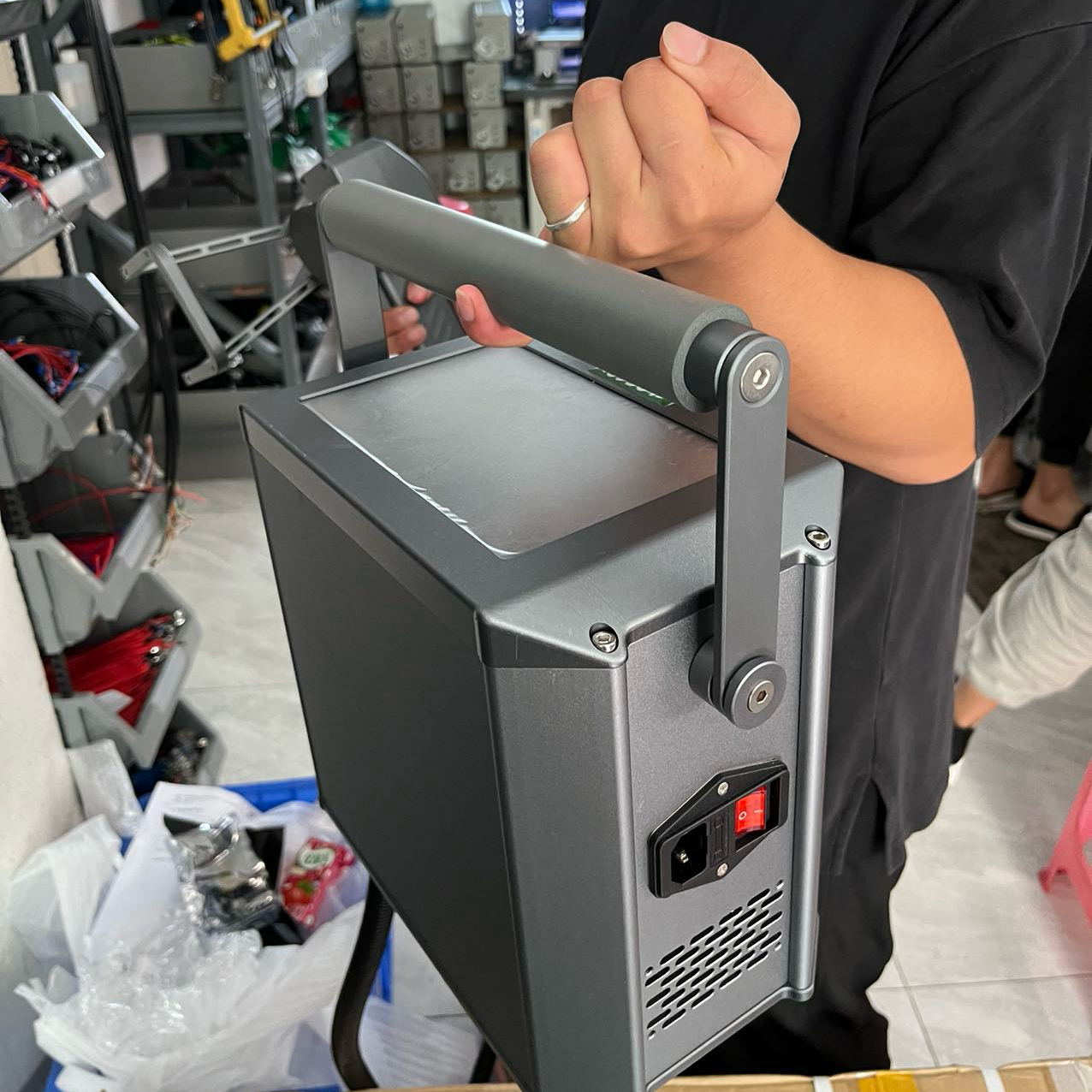

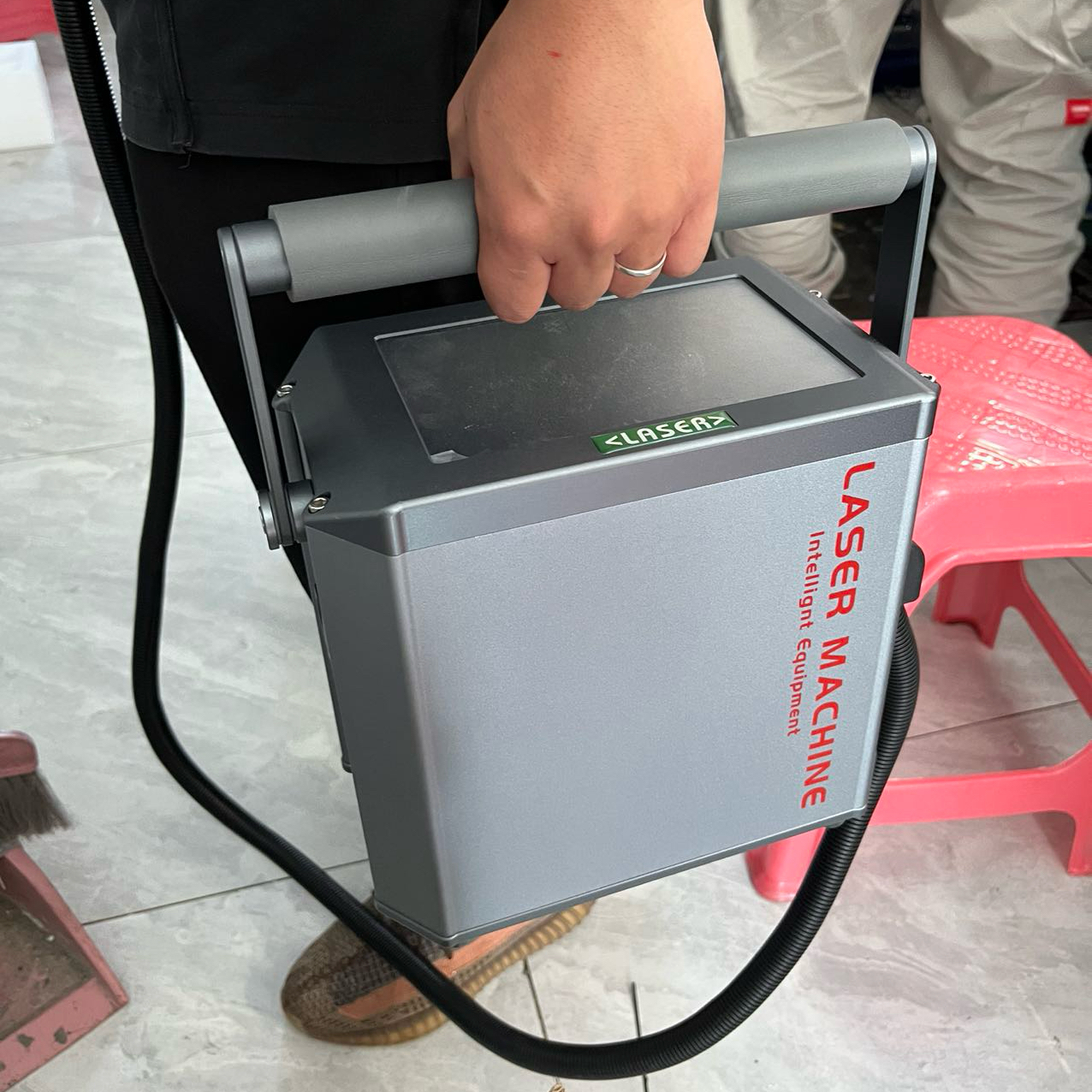

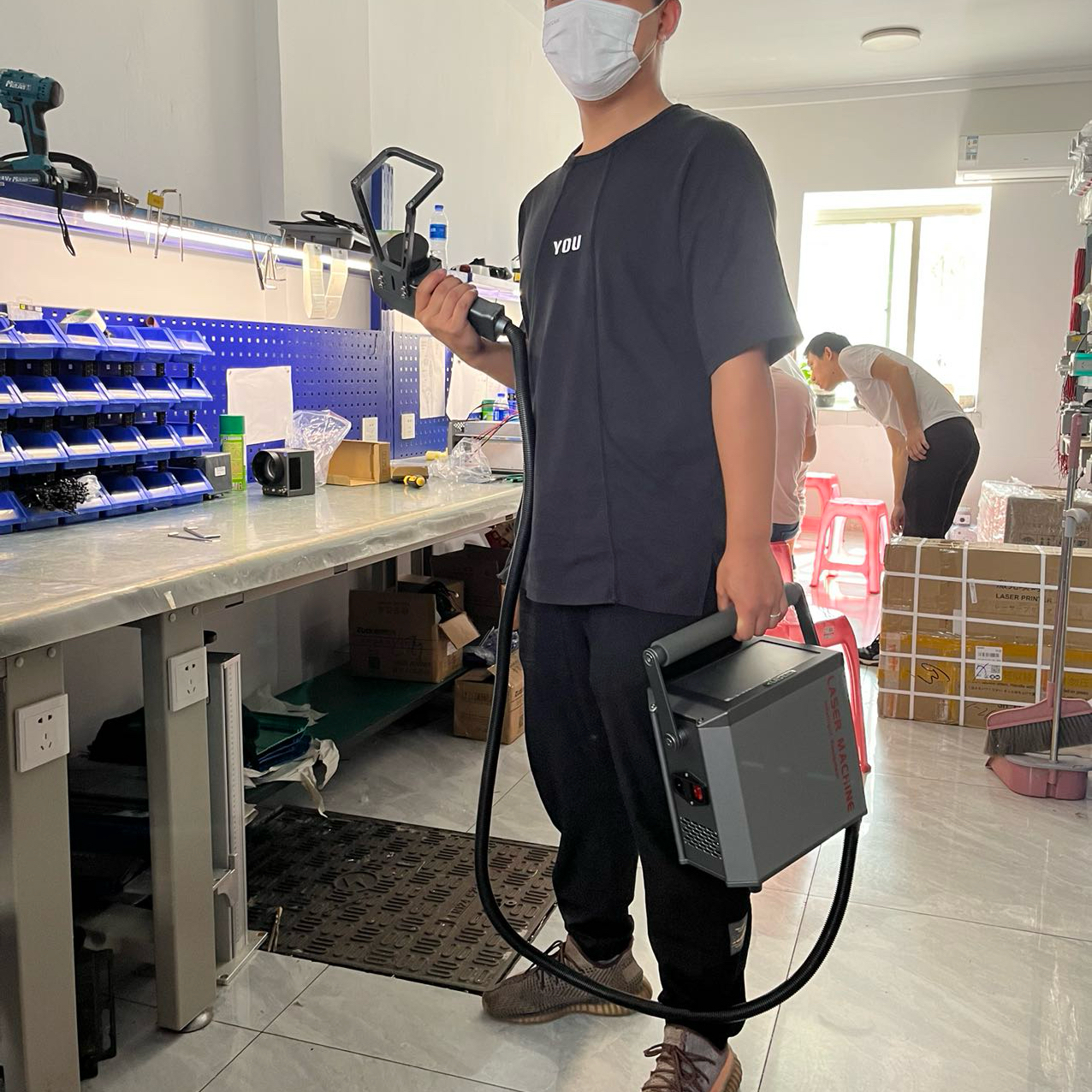

| Net machine weight |
Handheld case: 7kg, handpiece: 1.25Kg, total weight after carton packaging: 8.25kg |

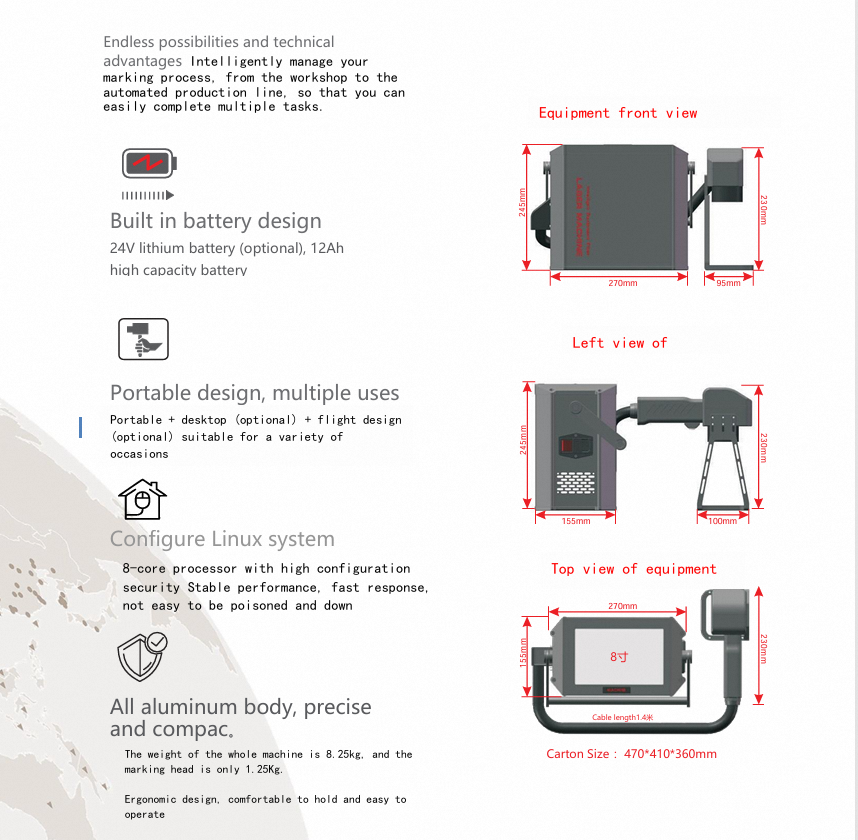

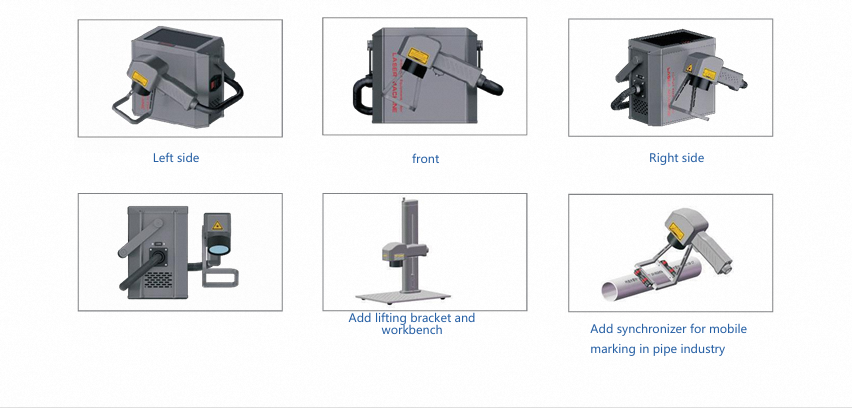

| Overall dimension |
Case: 270*155*245, hand-held head: 240*100*230mm, packing case: 470*410*360mm |
| Environment |
Requirement |
External temperature: 0 ℃ - 45 ℃; Humidity ≤ 95%; Non condensing; No vibration |
