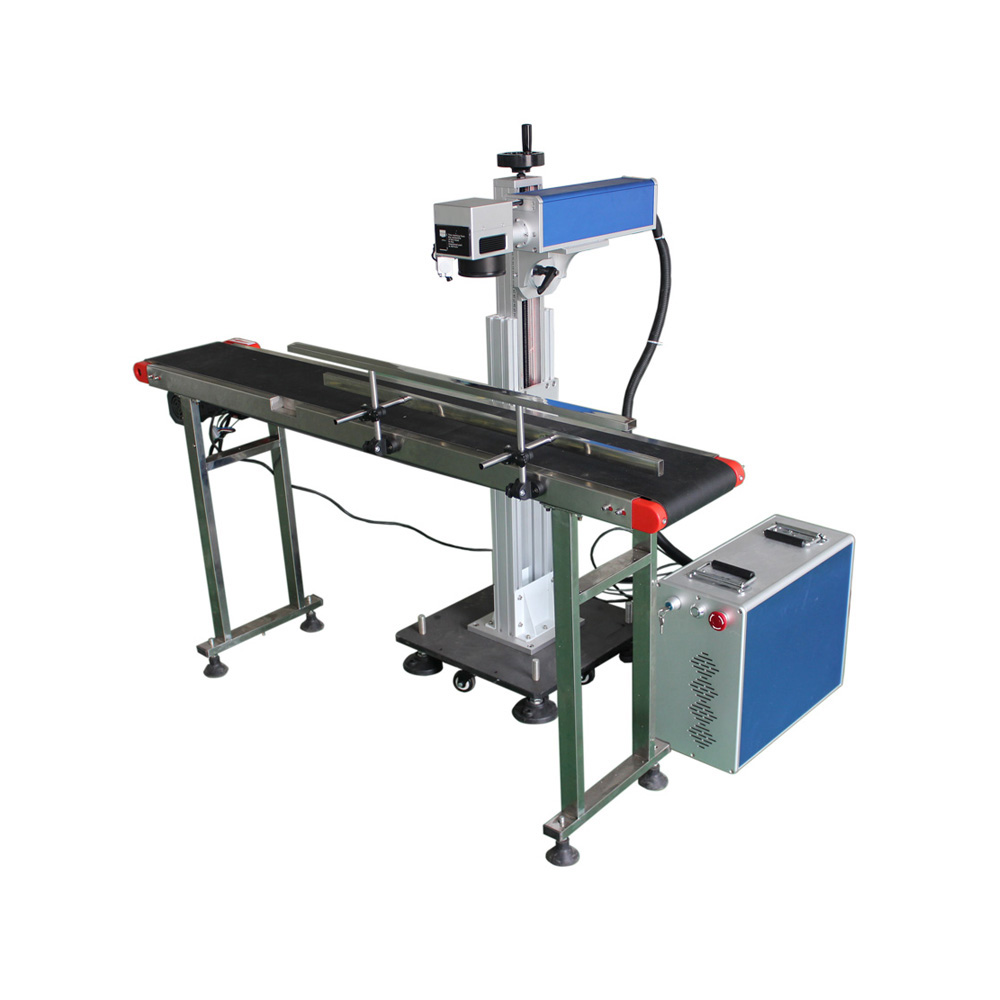

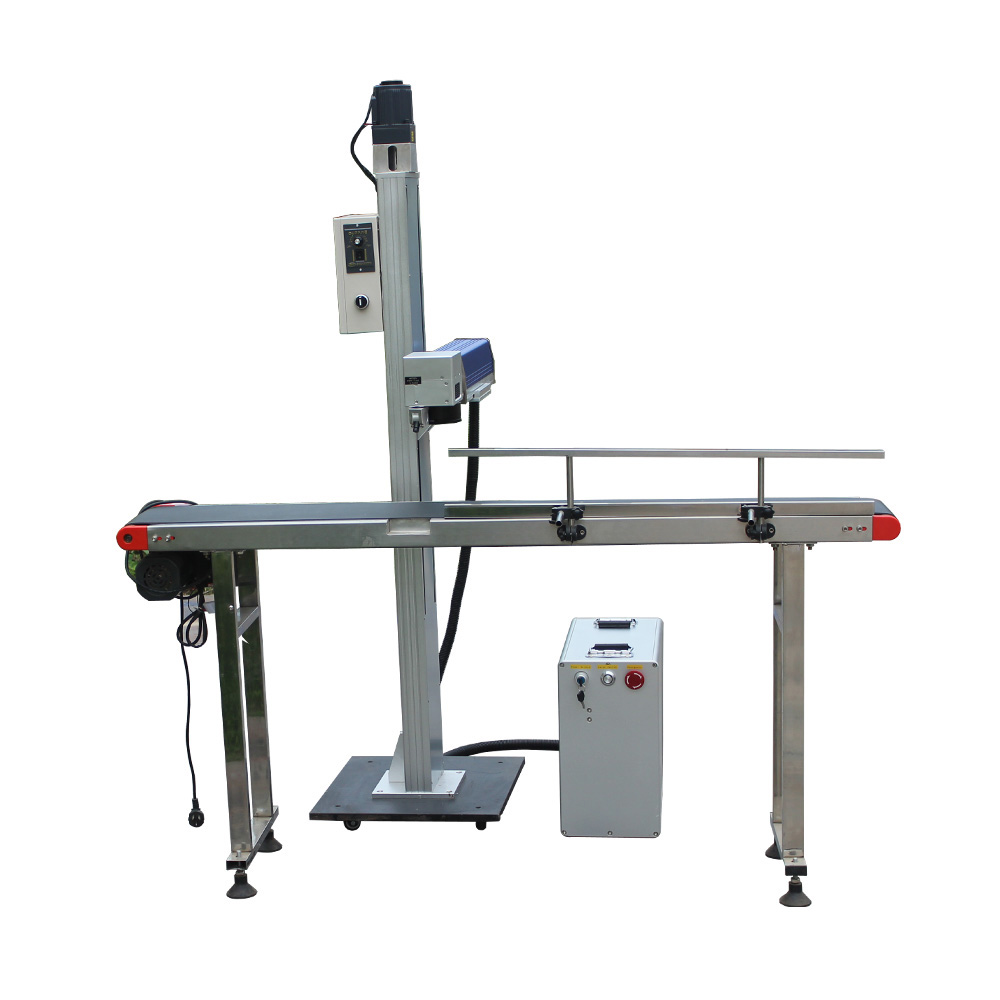

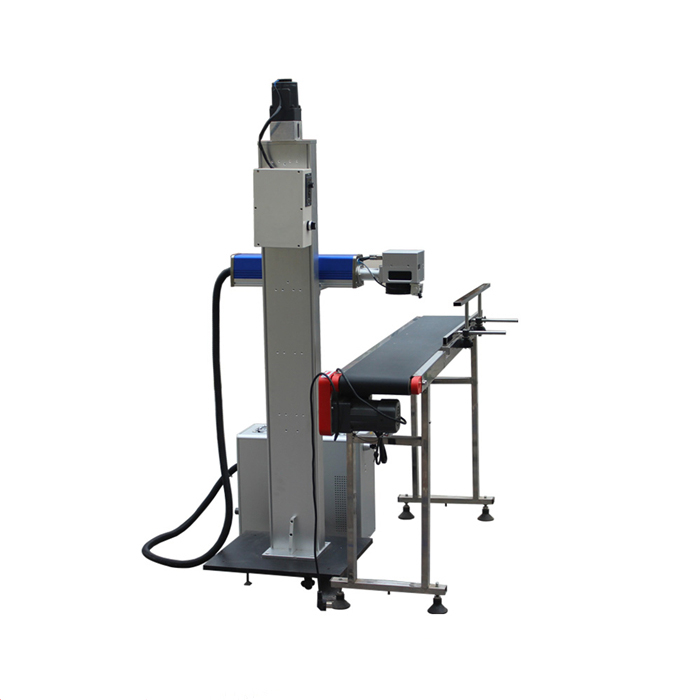

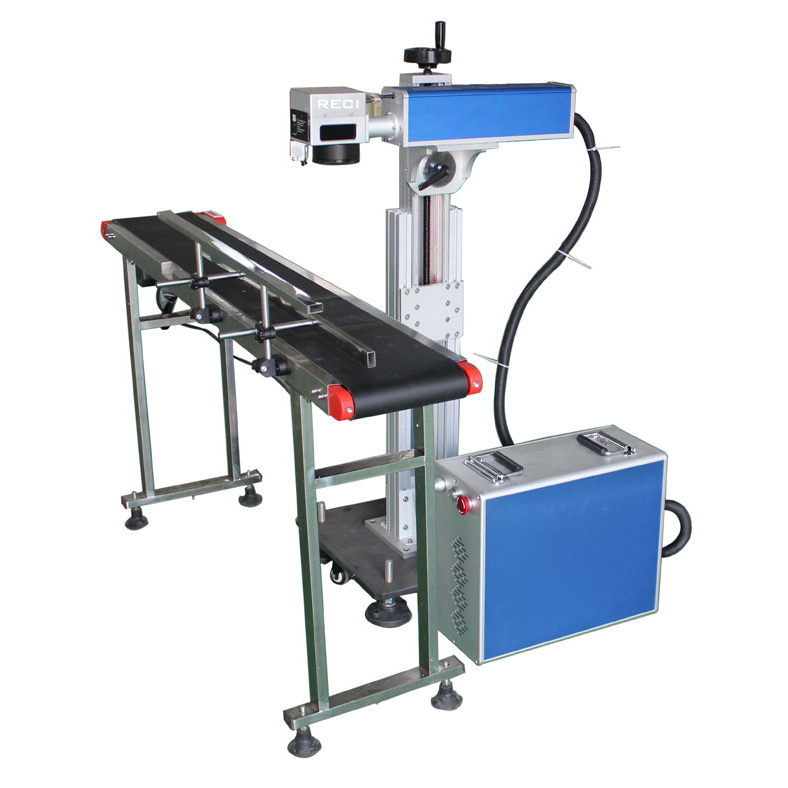

Flying Laser Marking Printing Machine 30W is a laser marking printer especially matched for automatic production lines for flying printing and marking of date codes or barcodes. Compared to the traditional inkjet printer, the Flying Laser marking printer features zero consumption of any materials, requires no ink, produces no pollution or noise, and is energy-saving and environmentally friendly.

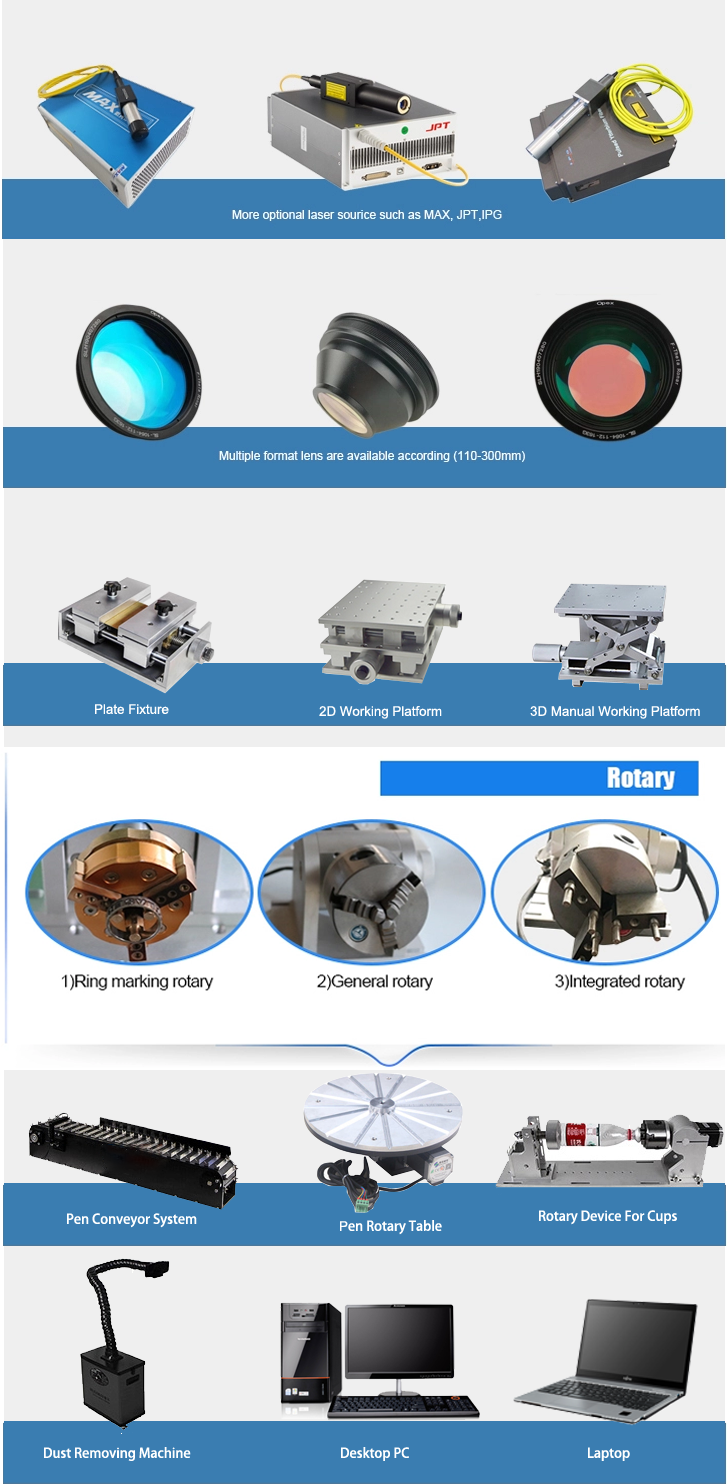

This series of Flying Laser Marking Printers can be equipped with different kinds of laser sources (fiber, CO2, or UV) and printer systems. It is widely used in food and beverage, pharmaceutical, tobacco, and leather industries. This 30W fiber source flying laser marking printer can be used for metal and nonmetal flying marking combined with various production lines.
| Parameter | Specification Details |
|---|---|
| Model | RC-20/30/50F |
| Laser power | 20w/30w/50w |
| Laser wavelength | 1064nm ±10nm |
| Q-frequency | 20KHz-100KHz |
| Pules frequency | 20KHz-100KHz |
| Divergence | 0.3mard |
| Marking range | 110*110mm/175*175mm/200*200mm/300*300mm/other |
| Minimun line width | 0.01mm |
| Minimun character | 0.1mm |
| Marking speed | 10000mm/s |
| Marking depth | 0~0.5mm |
| Engraving line speed | ≤7000mm/s |
| Repeatability accuracy | ±0.001mm |
| Beam quality | M2:1.2~1.8 |
| Marking format | Graphics, text, bar codes, two-dimension code, automatically marking the date, batch number, serial number, frequency, etc. |
| Graphic format supported | BMP, JPG, GIF, PNG, TIF, AI, DXF, DST, PLT, etc. |
| Working voltage | 220V ±10%/50Hz/4A |
| Unit power | <0.5kw |
| Use of the environment | Clean and dust free or dust less |
| Working condition: Humidity | Free of condensed water |
| Laser module life | >100000 hours |
| The whole life | More than 15 years |
| Packing size | 660*480*850mm |
| Net Weight | 90kg |

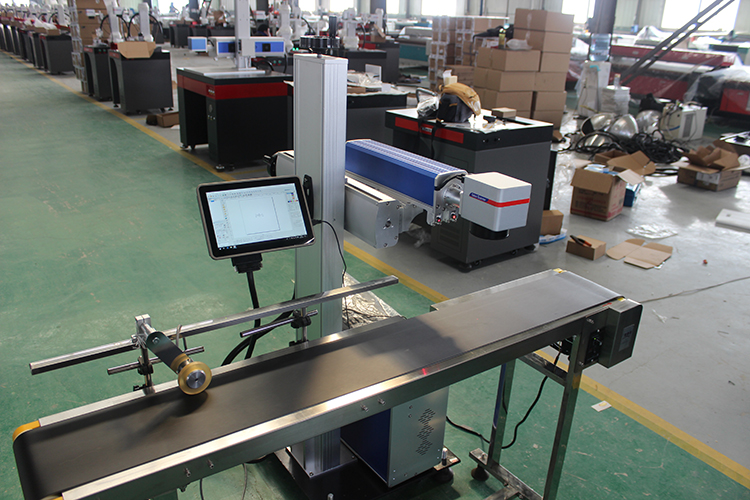

Flying Fiber Laser Marking Printing Machine Advantages: Compared to traditional inkjet printers, laser printers offer low material consumption, no pollution, no noise, energy savings, environmental protection, simple operation, stable performance, long lifetime, and low maintenance costs. The machine is optimized for flying marking on production lines for high-volume manufacturing.
"We are a reliable manufacturer with extensive experience in this field since 2009. You will receive premium quality and consistent support when partnering with us. Integrity, Quality, and Responsibility are our core guidelines."
