What is Long pulse Alex-ND Yag?

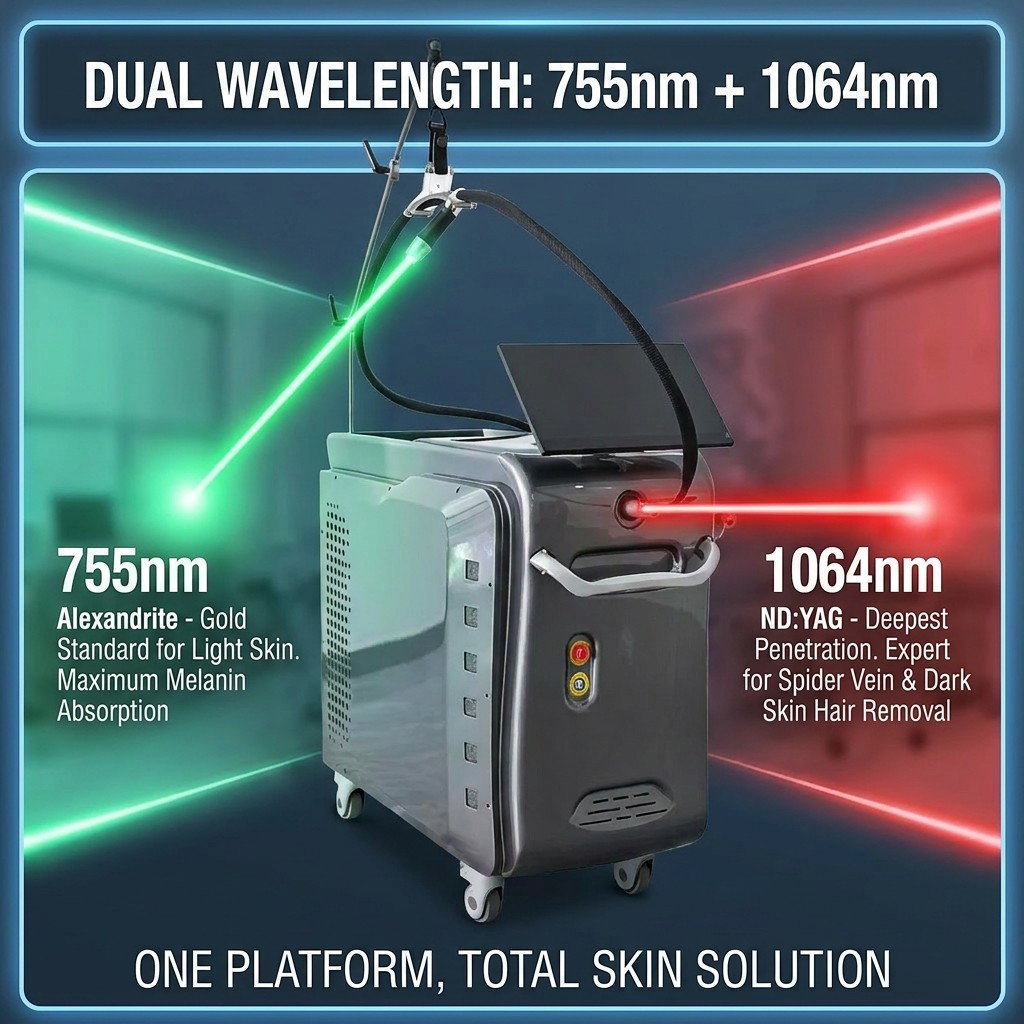

The Alex-ND Yag is a single consolidated system that delivers a range of treatments - all skin type hair removal, as well as pigmented and vascular lesions. It is a dual wavelength laser platform that combines the fastest and most powerful 755 nm Alexandrite laser with the 1064 nm Nd:YAG laser for high performance treatment capabilities in terms of speed, efficacy, ease-of-use, outstanding performance, safety and patient satisfaction.

Working Principle

Long-pulse lasers emit laser light of specific wavelengths to precisely target target tissues in the skin. Its treatment principles include:

• Selective photothermal effect: Laser energy is absorbed by specific pigments (such as melanin) or hemoglobin in the skin, converted into heat energy, and destroys the target tissue.
• Stimulate collagen: Long-pulse laser penetrates deep into the dermis, stimulates the production of fibroblast collagen, promotes collagen production, and improves skin elasticity and firmness.
• Thermal effect: By controlling the laser pulse width and precision, the target tissue is heated accurately and the damage energy to the surrounding healthy tissue is reduced.

Application

• Skin rejuvenation
• Freckle removal
• Hair removal
• Vascular skin disease treatment

Clinical Advantage Report: 755nm/1064nm Dual-Wavelength Platform

Validated Protocols for Professional Aesthetic Clinics & Dermatology Centers

1. Optimized Dual-Wavelength Synergy for Full-Spectrum Fitzpatrick Profiles

• Medical Logic: Integration of the 755nm Alexandrite (high melanin absorption) and 1064nm Nd:YAG (deep penetration/lower epidermal absorption) allows for precise targeting of chromophores across Fitzpatrick Skin Types I-VI.
• Clinical Efficacy: Specific protocols for Type IV-VI skin utilize longer pulse durations (15-35ms) to ensure epidermal preservation while achieving permanent thermal destruction of the hair follicle.
• Clinical Endpoints: Standardized results marked by perifollicular edema and erythema, ensuring high clearance rates with minimal sessions.

2. Specialized Vascular Therapeutics (1064nm Nd:YAG Only)

• Medical Logic: The 1064nm wavelength is optimally absorbed by oxyhemoglobin in deep-seated vessels.
• Clinical Scope: Precise treatment of Telangiectasia (Facial Redness), Spider Veins, and Reticular Leg Veins using controlled fluences (22-35 J/cm²) and targeted pulse widths (10-30ms).
• Clinical Endpoints: Immediate vascular blanching or darkening (coagulation), indicating successful vessel closure without purpura.

3. Advanced Pigmentary Management & Epidermal Rejuvenation

• Medical Logic: Leveraging the high absorption peak of the 755nm wavelength for melanin, the system effectively targets Solar Lentigines, Ephelides (Freckles), and dermal pigmentation.
• Clinical Scope: Short-pulse dynamics (3-10ms) deliver high peak power to shatter pigment clusters while the TEC-Sapphire cooling protects the surrounding tissue.
• Clinical Endpoints: Desired micro-crusting or darkening of the lesion, leading to total clearance within 7-14 days.

4. Dynamic Pulse Duration for Thermal Relaxation Precision

• Medical Logic: Adjustable pulse widths from 3ms to 100ms allow practitioners to match the Thermal Relaxation Time (TRT) of varied targets—from fine telangiectasias to thick hair follicles.
• Clinical Safety: This precision minimizes the risk of collateral thermal damage, making it the Gold Standard for treatment in sensitive anatomical areas and darker phototypes.

5. Extended Clinical Utility: Acne & Onychomycosis Management

• Inflammatory Acne: The 1064nm wavelength targets the vascular component of active acne lesions, reducing inflammation and stimulating the healing response.
• Onychomycosis (Nail Fungus): Utilizing high-fluence 1064nm pulses to induce hyperthermia within the nail bed, effectively neutralizing fungal pathogens without the need for systemic anti-fungal medication.
• Clinical Protocol: Standardized 2-week intervals with specific 3-5mm spot size settings for maximum sub-ungual penetration.

Why Choose Our Dual-Wavelength System Over Standard Diode Lasers?

• Professional Vascular Treatment: While diode lasers only handle hair removal, our dedicated 1064nm ND:YAG wavelength is the Gold Standard for Spider Veins and deeper vascular lesions.
• Nail Fungus (Onychomycosis) Solution: Expand your clinic's service menu with effective nail fungus treatments—a high-demand medical service that standard hair removal devices cannot provide.
• Deeper Penetration for Dark Skin: Safer and more effective for Fitzpatrick Type IV-VI, offering a truly universal skin platform.

Specifications

Based on our foundation of technological innovation, we have actively invested in research and development, resulting in the acquisition of 250 patents and 15 computer software copyrights. These achievements further solidify our leading position in the beauty device industry.

We take pride in our product certifications, including EC, CE, TUV, and ISO. These certifications provide our customers with reliable quality assurance.

To ensure the safety and effectiveness of our devices, they undergo rigorous clinical testing. We are also willing to provide customers with free test data to enhance their understanding of product performance. Additionally, we offer one-on-one training to ensure that customers can use and maintain the equipment correctly, achieving the best treatment outcomes.

In our continuous pursuit of excellence and customer satisfaction, we are committed to providing customers with high-quality and trustworthy beauty devices, backed by professional support.

Professional OEM Solution

We offer a professional OEM solution for 808nm laser hair removal beauty devices, designed to meet the personalized needs of different customers while ensuring high-quality products and services. Here are the key features of our OEM program:

• 1. Customized Exterior Design: We can customize the exterior design to match the client's brand, including colors, logos, and packaging.
• 2. Customized Technical Specifications: Clients can customize technical specifications to meet different skin types and hair removal requirements based on their market needs and target audience.
• 3. Quality Control: We have strict quality control processes in place to ensure that each customized device meets the highest standards and complies with relevant certifications.
• 4. Efficient Production: Our advanced equipment and high production efficiency can accommodate large-scale custom orders.
• 5. Professional Support Team: We have an experienced technical support and after-sales team that provides training, maintenance, and technical support.
• 6. Confidentiality Agreement: We commit to maintaining the confidentiality of client's business secrets and OEM cooperation information.
