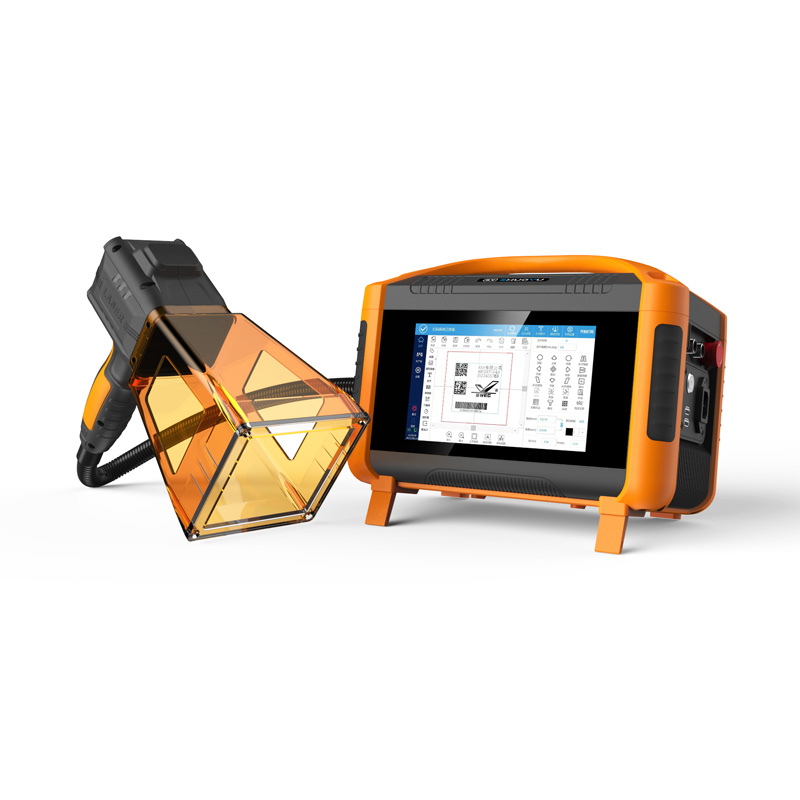

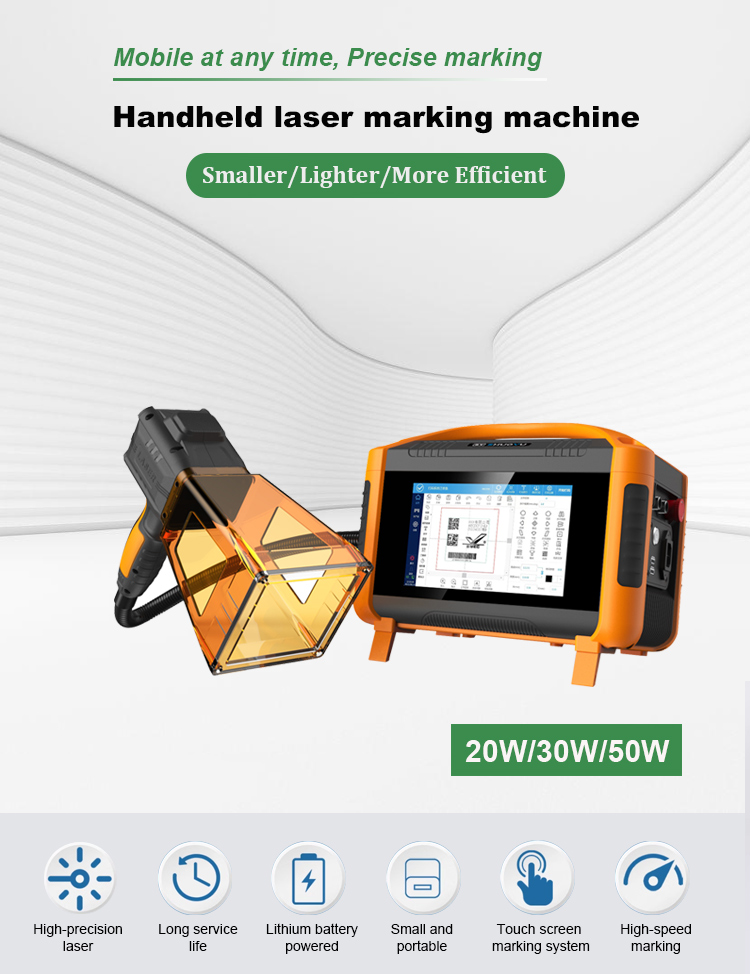

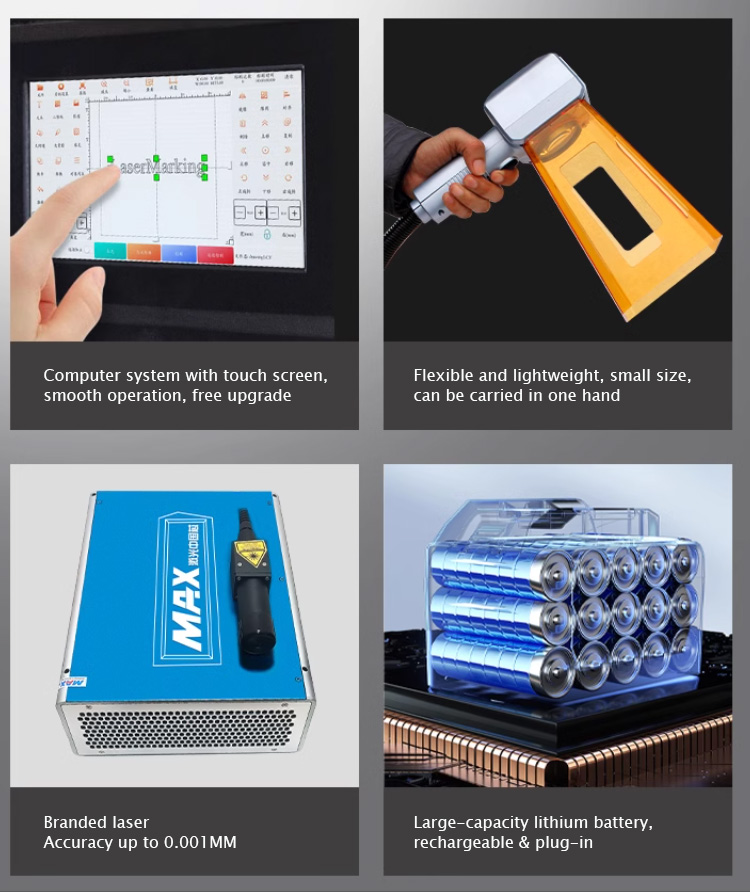

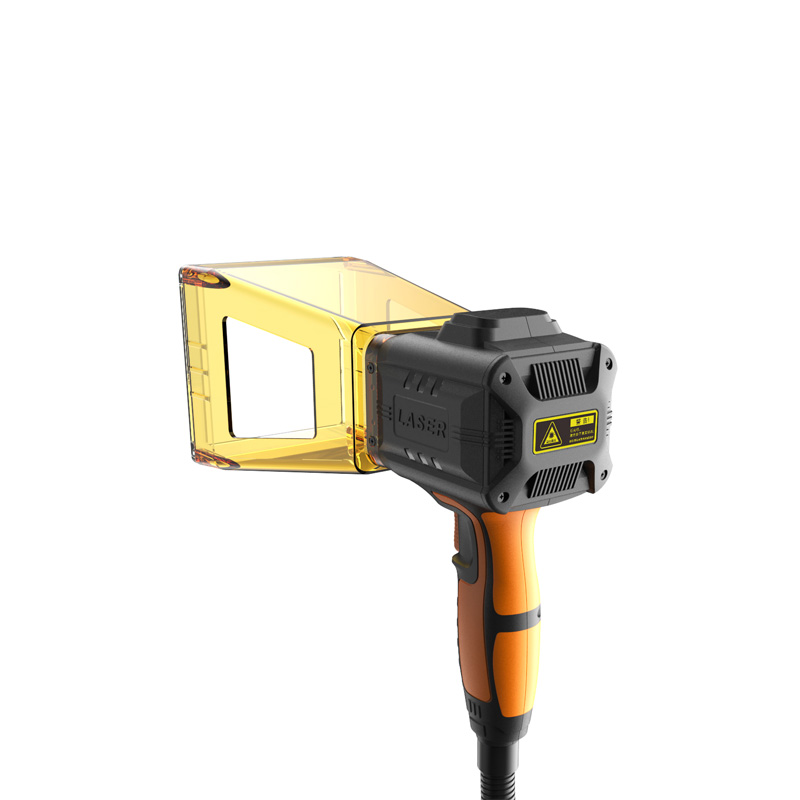

Leading the Logo Revolution! With advanced laser technology, we create faster and more accurate marking solutions for a wide range of materials and products. The ultra-large capacity battery design, excellent heat dissipation air duct system, and high-precision optical system ensure continuous full-power marking without heat build-up, while maintaining up to 99.8% actual light yield, bringing a qualitative leap in production efficiency. Equipped with an 8-core Linux system and intelligent operation interface, it is easy to operate and can easily complete various marking tasks.
| No. | Item | Data |
|---|---|---|
| 1 | Power | 20W / 30W / 50W |
| 2 | Marking Speed | ≤7000mm/s |
| 3 | Marking range | 70×70mm / 100×100mm (Optional) |
| 4 | Laser wavelength | 1064nm |
| 5 | Focus the lens | 130mm |
| 6 | Deflection seismic mirror | High-precision two-dimensional scanning system |

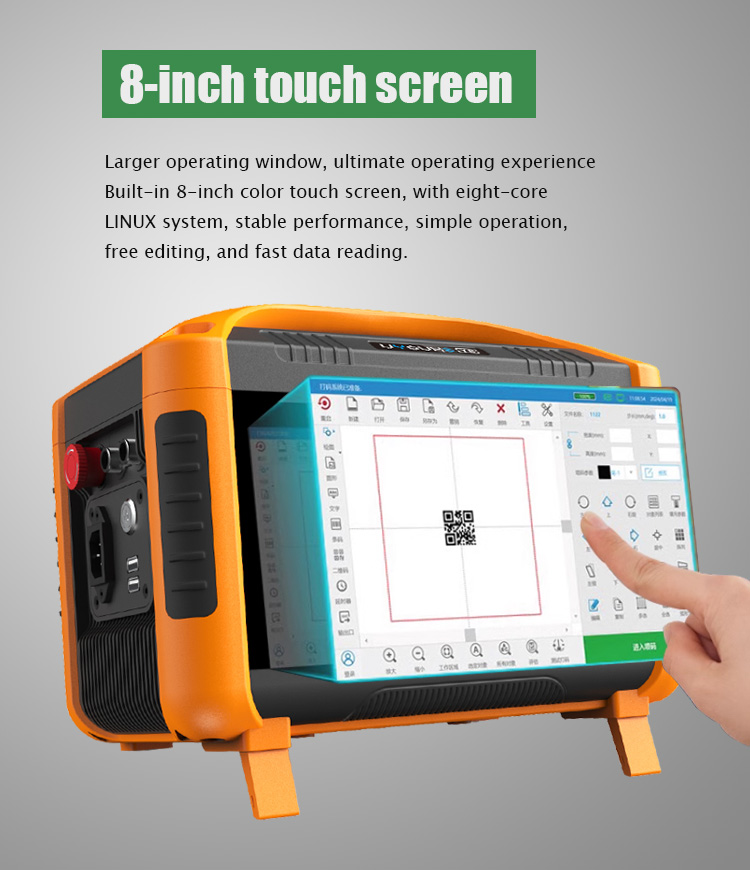

| 7 | Master control | Integrated motherboard, 8-inch capacitor fully bonded to the screen |
| 8 | Operating system | Linux system |
| 9 | Marking type of engraving | Redlett Postionen, Foxin |
| 10 | Line width | 0.03mm |
| 11 | Repeatable positioning accuracy | 0.01mm |

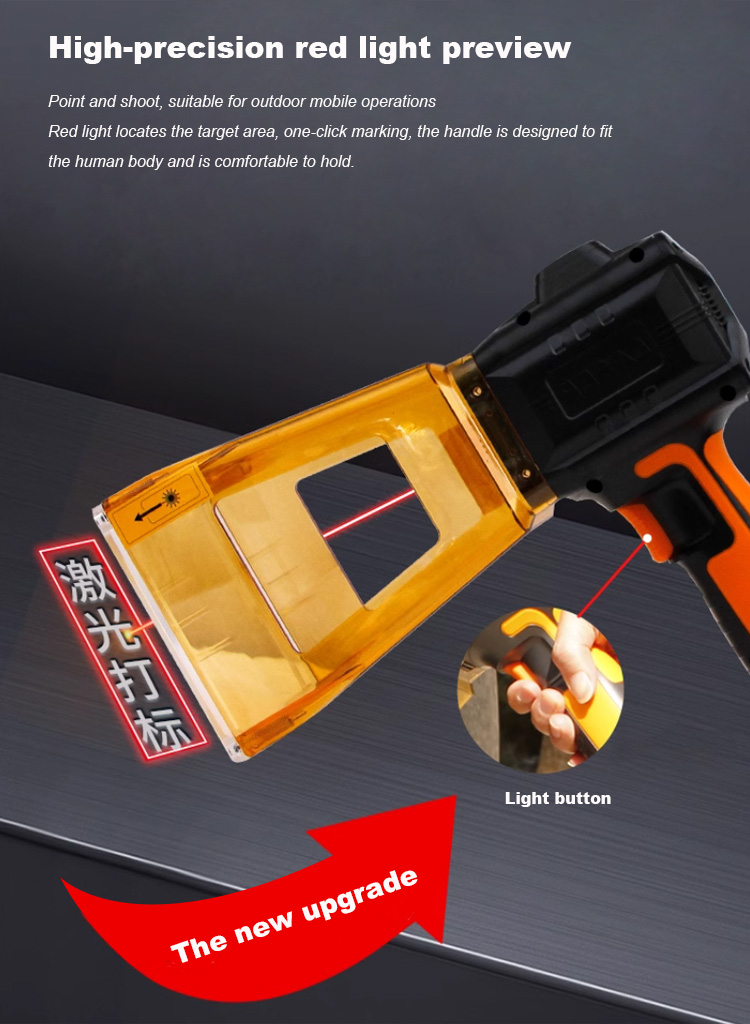

| 12 | Targeting method | Red light positioning, focusing |
| 13 | The number of engraved character lines | Any line within the valid marking range |
| 14 | Print speed | 800 characters (related to material and printed content) |
| 15 | Font | Chinese and English, numbers, Chinese Traditional and other standard fonts |
| 16 | File format | BMP, DXF, HPGL, JPEG, PLT |
| 17 | Barcode & QR Code | CODE39, CODE128, CODE126, QR |
| 18 | Power supply | 220VAC / 324Wh (15Ah) |
| 19 | Power consumption | ≤250W |
| 20 | Operating temperature | 0-40°C |

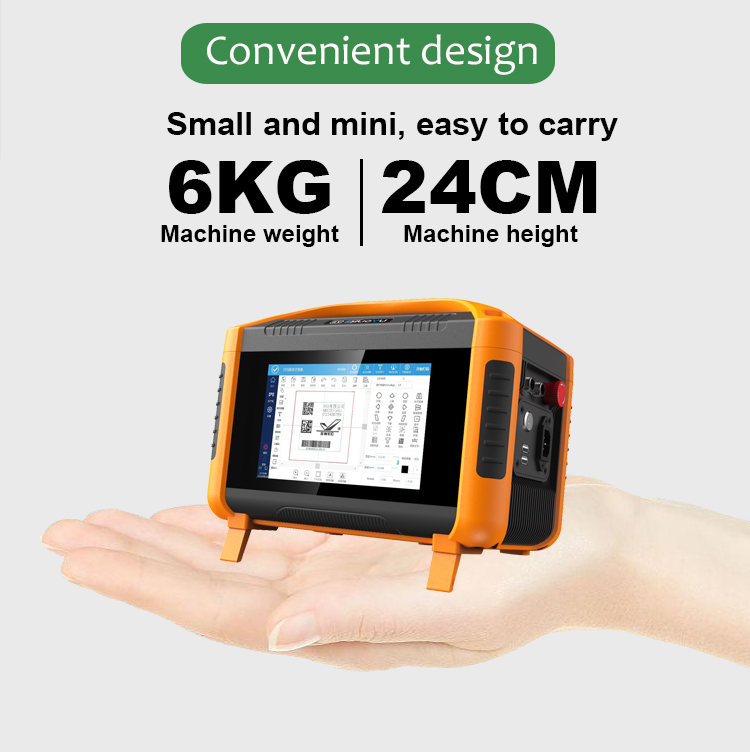

| 21 | Total Weight | 6~6.8Kg (plug-in version / lithium battery version) |
| 22 | Outer packing box size | 520×415×305mm (length×width×height) |
Can mark rich content. Supports multiple formats such as BMP/DXF, barcode/QR code, automatic code jump, etc.
One machine can handle all metals and various non-metallic materials.

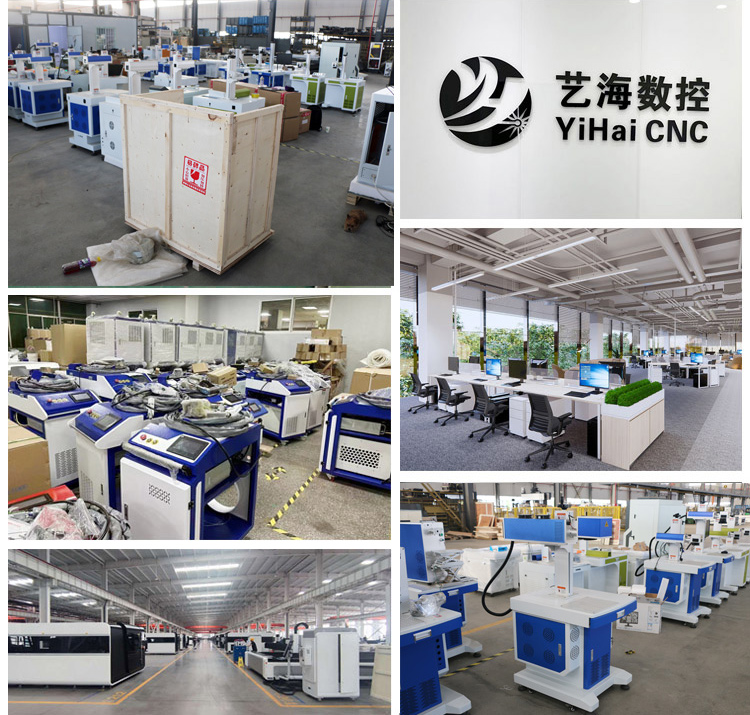

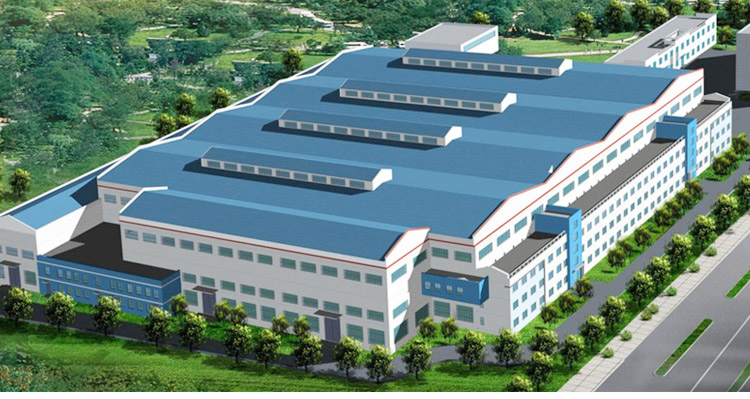

We are a leading enterprise specializing in the production and processing of CNC equipment, CNC cutting machines, plasma cutting machines, laser cutting machines, laser welding machines, laser cleaning machines, stone engraving machines, advertising engraving machines, woodworking engraving machines, and other products. We possess a complete and scientific quality management system. Our integrity, strength, and product quality have been widely recognized by the industry.
We provide a 3-year after-sales warranty and lifetime technical support. We have a professional technical team to provide you with services, making you hassle-free after-sales.
