Power Lase 808 Advanced Diode System for Hair Removal

The BS-LHR11 Diode Laser Hair Removal System represents a new generation of professional-grade aesthetic laser equipment. Built on advanced 808nm diode laser technology, this model delivers safe, efficient, and long-lasting hair reduction for all skin types.

In addition to permanent hair removal, the BS-LHR11 is also designed to perform skin rejuvenation, pore refinement, and collagen stimulation, offering a comprehensive solution for aesthetic clinics and dermatology centers.

Principle of Operation

The BS-LHR11 utilizes a selective photothermolysis mechanism. The melanin pigment in hair follicles selectively absorbs the diode laser light (808nm), which is then converted into heat energy. This heat destroys the follicle's regenerative capacity without damaging surrounding tissue. By targeting follicles during their active growth phase (anagen), the system ensures maximum hair reduction efficiency.

The longer wavelength of the diode laser allows deeper skin penetration, making it highly effective and safe for darker skin tones (Fitzpatrick types I-VI).

Features of the Diode Laser Hair Removal Machine

High Energy Density Output

Efficiently delivers concentrated light energy to the target tissue for maximum hair removal efficacy.
Superior Cooling System

Equipped with sapphire contact cooling (0-4°C) and an isothermal water circulation system to maintain consistent temperature and ensure patient comfort.
Large Spot Size & High Frequency

Spot size up to 12×20mm and repetition rate of 1-10Hz, enabling faster treatment of large body areas with reduced session time.
Multi-Wavelength Options

Configurable with 755nm + 808nm + 1064nm for comprehensive coverage (755nm for lighter hair/fine follicles, 808nm standard for most hair types, 1064nm for deep penetration on dark/tanned skin).
User-Friendly Touchscreen Interface

Intuitive control panel with real-time monitoring and customizable parameters for various skin types and body areas.
Smart Self-Protection System

Automatic safety checks and self-diagnostic features ensure long-term reliability and operator safety.

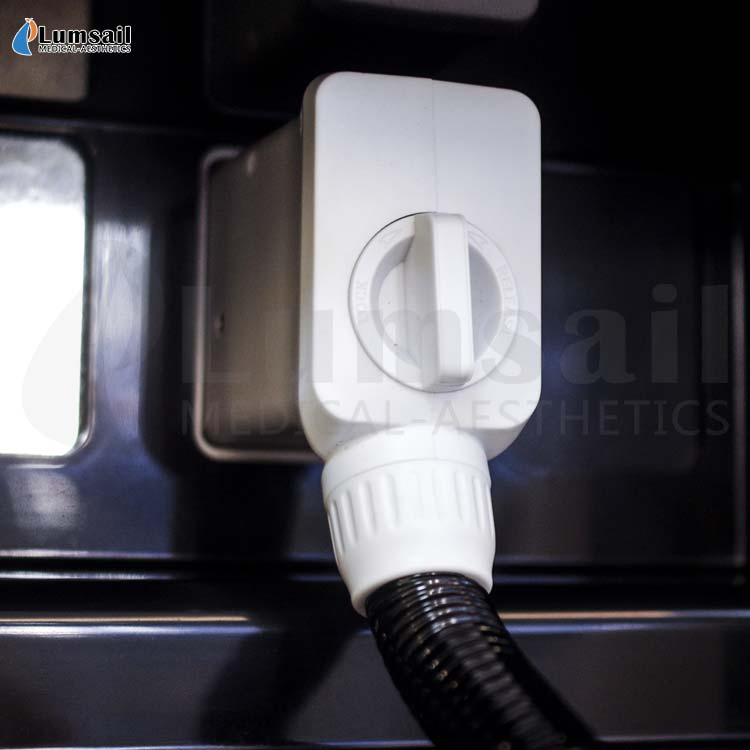

Rotatable handle plug, easier to install.

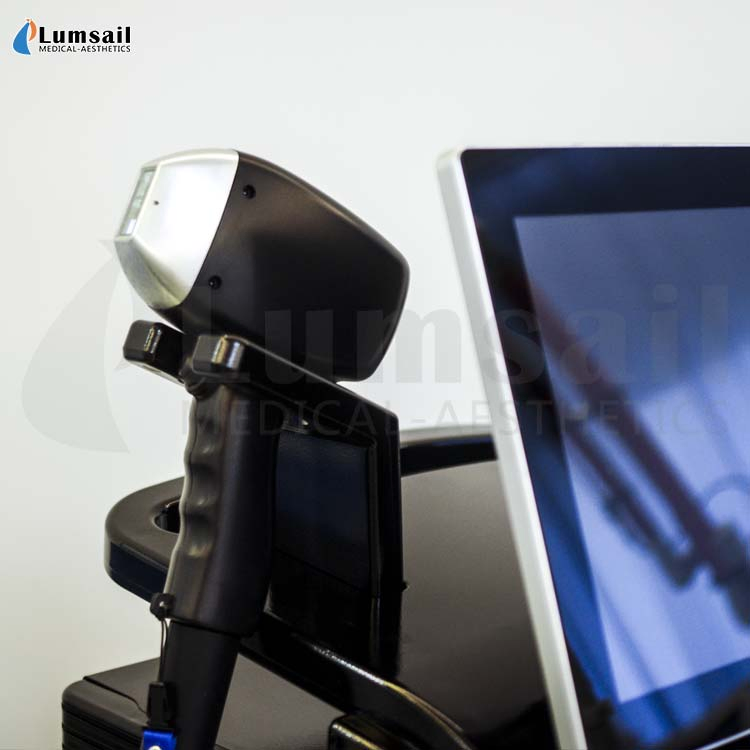

Wear-resistant tube, more durable. Handle is injection molding design, lighter and more practical.

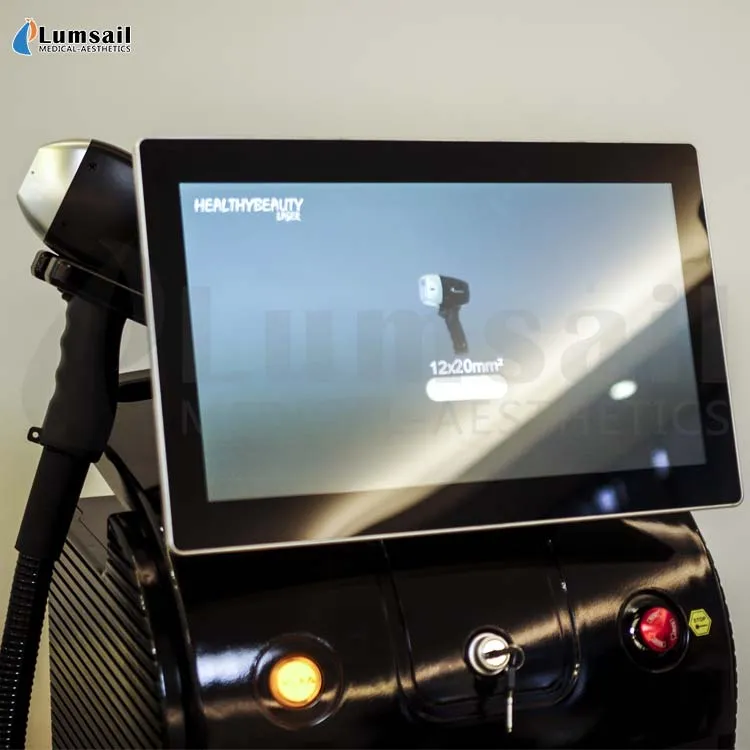

Brand new 12 inch screen is clear and easy to operate.
Handle is injection molding design, lighter and more practical.
Upgrade the heat dissipation hole, the heat dissipation effect is good, and the heat dissipation is fast.

Applications of the Diode Laser Equipment

1. Permanent Hair Reduction

Suitable for removing unwanted hair from the face, arms, underarms, chest, back, bikini area, and legs.

Effective for all skin types and various hair colors, especially medium to dark tones.

2. Skin Rejuvenation & Tightening

Stimulates dermal collagen regeneration and microcirculation.

Improves skin elasticity, texture, and tone, and helps reduce fine lines and enlarged pores.

3. Medical and Aesthetic Clinics

Widely used in dermatology, plastic surgery clinics, beauty centers, and medical spas.

Ideal for both men and women, offering professional-grade results with minimal discomfort and downtime.

Technical Specifications

Parameter	Specification
Laser Source	Diode Laser
Wavelength Options	808nm (standard) / 755nm + 808nm + 1064nm (optional)
Output Power	500W (10 bar) - 800W (16 bar)
Electrical Power	1200W - 1800W
Pulse Width	10ms - 400ms adjustable
Repetition Frequency	1 - 10Hz continuous mode
Spot Size	12mm × 20mm (customizable)
Cooling System	Sapphire touch cooling + close-loop water circulation
Cooling Temperature	0°C - 4°C
Control Panel	Color Touchscreen Interface
Weight	65 kg
Power Supply	AC 220-240V, 50Hz, 10A

Clinical Advantages

Virtually painless treatment with advanced cooling contact technology.

High efficacy rate: up to 95% permanent hair reduction after 4-6 sessions.

Safe for all skin types, including tanned and darker tones.

Fast and cost-effective with minimal maintenance requirements.

No downtime - patients can resume normal activities immediately post-treatment.

Relative Instruments

Frequently Asked Questions

Which wavelengths does this system support?

The standard wavelength is 808nm, but it can be configured with 755nm, 808nm, and 1064nm multi-wavelength options to cover all hair types and skin tones.

Is the diode laser treatment painful?

No. The treatment is virtually painless thanks to the superior sapphire contact cooling system that maintains a consistent surface temperature of 0°C to 4°C during the session.

How many sessions are required to see permanent hair reduction?

Most patients see up to a 95% reduction in permanent hair after 4 to 6 sessions, depending on individual hair growth cycles and types.

Is this machine suitable for dark or tanned skin?

Yes. The deep penetration of the 808nm and optional 1064nm wavelengths makes this system exceptionally safe and effective for Fitzpatrick skin types I through VI, including darker and tanned skin tones.

Can this equipment do skin treatments other than hair removal?

Yes, it features applications for skin rejuvenation, pore refinement, and collagen stimulation to improve overall skin elasticity, texture, and tone.

What is the recovery downtime after a treatment?

There is no downtime required. Patients can resume their normal daily activities immediately after the diode laser treatment.
